10ft Open Mesh Floor Bunded Store
The most thoroughly specified of our 10 ft containment stores: a 300 mm raised bund formed over a welded 3 mm Durbar plate floor, with a galvanized mesh deck rated to 7.5 kN/m² above it. Three layers, each doing a job — the plate seals, the bund holds volume, the mesh keeps stock clear of both.
Drums and IBCs stand on the mesh with nothing pooling around their bases. Leaks drop into the sealed sump below, where they can be inspected through the deck and pumped out without disturbing the stored goods. For a store that is worked regularly, or where the material is aggressive enough that standing in it would attack the drum, that separation is the whole point.
The 10 ft footprint suits a working stock, a decanting point or a satellite store kept near the point of use rather than centralised. Twelve vents give through-ventilation appropriate to the internal volume.
Required containment volume and signage depend on the substance and on local rules — send us the details and we will confirm the specification.
Specifications
| External Length | 2.99 m (9 ft 10 in) |
|---|---|
| External Width | 2.44 m (8 ft 0 in) |
| External Height | 2.59 m (8 ft 6 in) |
| Internal Length | 2.84 m (9 ft 4 in) |
| Internal Width | 2.35 m (7 ft 9 in) |
| Internal Height | 2.39 m (7 ft 10 in) |
| Door Width | 2.34 m (7 ft 8 in) |
| Door Height | 2.28 m (7 ft 6 in) |
| Weight | 1620 kg (3,571 lb) |
| Floor Type | Steel Bunded Floor |
Build and fittings

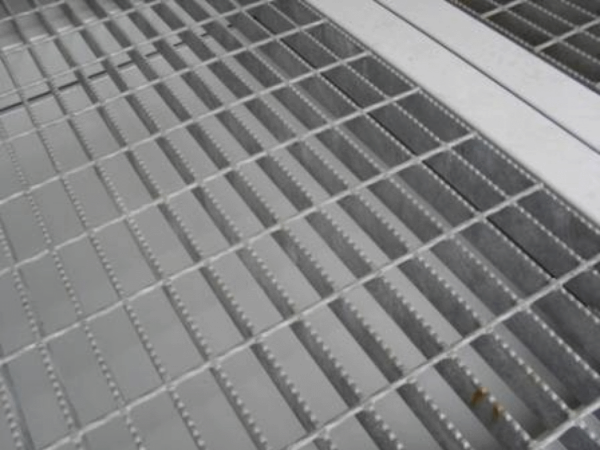

- Galvanized open mesh deck rated to 7.5 kN/m² (157 lb/ft²)
- 300 mm (11.8 in) raised bund beneath the deck
- 3 mm (0.12 in) Durbar plate floor welded in to seal the sump
- Stored drums stand clear of any collected liquid
- Sump inspectable through the deck without moving stock
- Built from a new one-trip container
- Cor-Ten steel construction
- 12 vents for through-ventilation
- Exterior hinged double doors, two locking bars per leaf
- Factory-fitted lockbox
- Containment and signage requirements vary by substance and jurisdiction — ask us to confirm
- Covered by our standard 12-month warranty
The 300mm Bund and Mesh Deck Explained

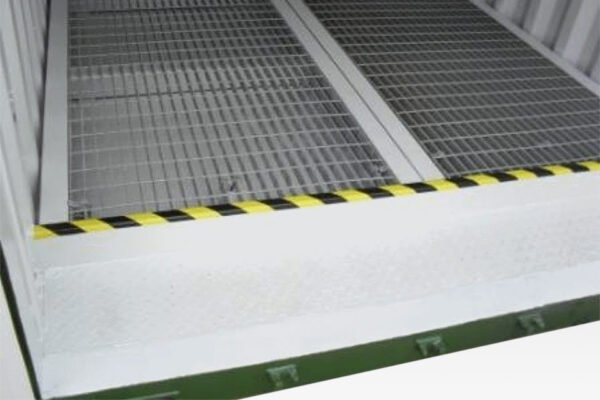

This unit combines two layers. Underneath is a welded 3mm Durbar plate floor with a 300mm raised bund around it, forming a sealed containment volume. Above it sits a removable galvanized mesh deck rated to 7.5kN/m2, which is where drums and small IBCs actually stand. Anything that leaks passes straight through the mesh and collects in the bund below, so stock never sits in its own spillage and the sump can be checked visually without moving the load.
Choosing It Over the Flat Floor Version
- Stored goods stay dry. Drum bases are held clear of any collected liquid, which matters for labelled steel drums and for anything you intend to move on again.
- Cleaner handling. Operators walk on a grip deck rather than through whatever has been released.
- Simple inspection. A glance through the mesh confirms whether the bund is clear — no unloading required.
- Same compact footprint. At 2.99m external length it still fits compound corners and yard set-downs where a 20ft unit will not.
The Cor-Ten shell, twin locking bars, factory-fitted lockbox and 12 vents are carried over from the one-trip container it is converted from, so security and passive ventilation match the larger units in the range.
Related Bunded Stores
Where a solid working surface is preferred to a mesh deck, the 10ft flat floor bunded store uses the same Durbar plate without the mesh over it, and the 10ft raised bunded store is another option in the same footprint. If drum numbers are growing, the 20ft open mesh floor bunded store doubles the deck area. See related conversions in the modified container range or ask us for a quote.
