20ft Raised Bunded Store

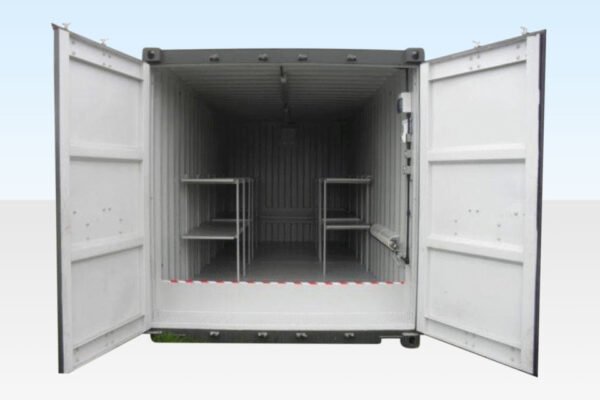

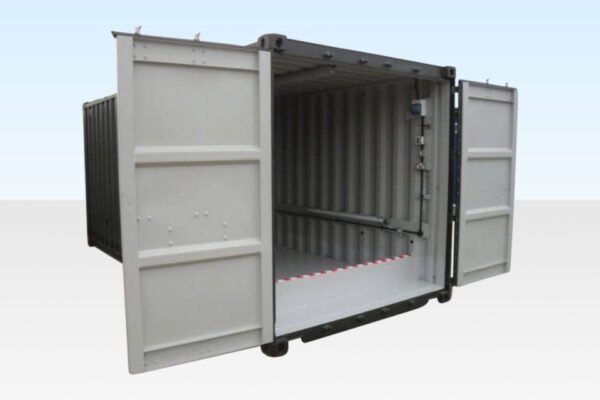

The raised bund is the difference between this and a flat-floor store. A 300 mm containment tray sits beneath a welded 3 mm Durbar working floor, so drums and IBCs stand clear of anything that collects below. A leaking container drips into the void rather than sitting in its own spill, and the floor above stays dry enough to walk and wheel on.
That makes it the configuration to choose where routine seepage is expected rather than merely possible — decanting areas, waste consolidation points, or any store where drums are handled often enough that the occasional weep is a certainty. At 5.84 m internal length it takes a full run of drums or several IBCs while keeping every one of them above the tray.
The shell is a one-trip Cor-Ten container, so the steel is unpitted and the door seals are new — both matter on a unit that may be inspected. Twenty-four vents keep vapour moving. Required containment volume, ventilation rates and signage depend on what you are storing and on state and local rules, so tell us the substance and quantity and we will confirm the specification before you order.
Specifications
| External Length | 6.06 m (19 ft 11 in) |
|---|---|
| External Width | 2.44 m (8 ft 0 in) |
| External Height | 2.59 m (8 ft 6 in) |
| Internal Length | 5.84 m (19 ft 2 in) |
| Internal Width | 2.35 m (7 ft 9 in) |
| Internal Height | 2.39 m (7 ft 10 in) |
| Door Width | 2.34 m (7 ft 8 in) |
| Door Height | 2.28 m (7 ft 6 in) |
| Weight | 2390 kg (5,269 lb) |
| Floor Type | Steel Bunded Floor |
Build and fittings
- Built from a new one-trip container
- 300 mm (11.8 in) raised bund beneath the working floor
- 3 mm (0.12 in) Durbar tread plate floor welded into the shell
- 24 vents for through-ventilation
- Cor-Ten weathering steel construction
- Exterior hinged double doors with two locking bars
- Factory-fitted lockbox
- Forklift pockets for repositioning on site
- Covered by our standard 12-month warranty
- Containment volume and signage requirements vary by substance and jurisdiction — ask us to confirm
Sizing Your Containment Store
At 5.84m internal length this unit takes a full run of drums or several IBCs while keeping them above the containment tray. For smaller quantities the 10ft raised bunded store covers the same specification in a shorter shell, and larger inventories are handled by the 40ft raised bunded store. Where you need liquid to drain away from the goods rather than sit beneath them, compare the 20ft open mesh floor bunded store. All containment units are grouped under hazardous containers and the wider modified container range.
