4m Flat Pack Kiosk

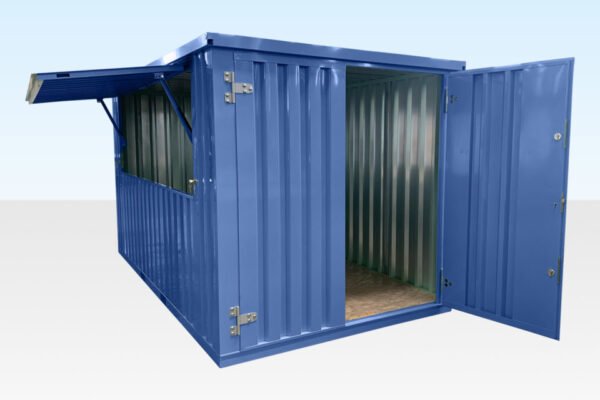

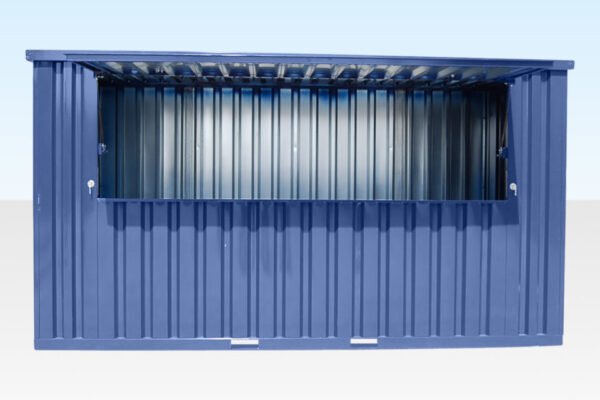

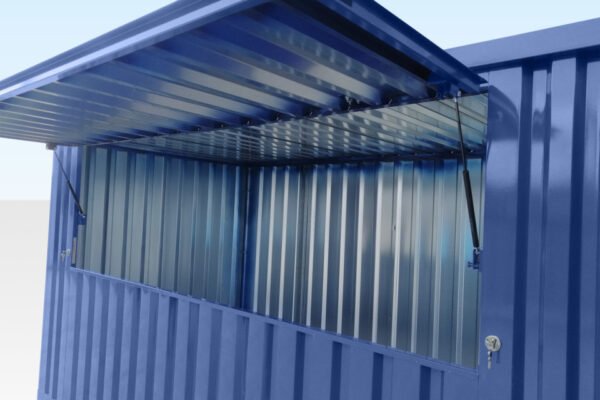

A galvanized 4 m flat pack unit with double doors and a top-hinged serving hatch, built to work as a counter. The hatch can be fitted to either long side, so you decide which way the kiosk faces once you know where the queue forms — not when you place the order.
What makes it useful is that it comes apart. Four people can lift any single component, so the kiosk demounts, travels on a small car trailer and rebuilds somewhere else between events or seasons — no crane hire, no HIAB, no specialist transport. That also means it can reach pitches that heavier units simply cannot: sites behind weak or low bridges, and soft ground where a delivery vehicle would sink.
It works equally well as a permanent fixture. Both the interior and exterior can be fitted out and clad, so the same shell serves as a festival bar one season and a fixed clubhouse servery the next. Three RAL finishes are available: cobalt blue, bottle green and slate grey.
Specifications
| External Length | 3.88 m (12 ft 9 in) |
|---|---|
| External Width | 2.14 m (7 ft 0 in) |
| External Height | 2.09 m (6 ft 10 in) |
| Internal Length | 3.78 m (12 ft 5 in) |
| Internal Width | 2.07 m (6 ft 9 in) |
| Internal Height | 2.00 m (6 ft 7 in) |
| Door Width | 1.25 m (4 ft 1 in) |
| Door Height | 1.80 m (5 ft 11 in) |
| Weight (Flatpacked) | 421 kg (928 lb) |
| Weight Heaviest Part (when Demounted) | 153 kg (337 lb) |
Build and options
- Fully galvanized body
- Top-hinged serving hatch, mountable on either 4 m side
- Double doors for access and loading
- Man-portable — four people can move any single component
- 421 kg (928 lb) flat-packed; heaviest single part 153 kg (337 lb)
- Transportable on a small car trailer
- Suits sites restricted by low or weak bridges, or by soft ground
- Interior and exterior can both be fitted out and clad
- Available in cobalt blue, bottle green or slate grey
- Covered by our standard 12-month warranty
Where the 4m Kiosk Works Best
Festival pitches, car parks, school grounds and rural sites all present the same problem: weak bridges, low headroom or soft ground that rules out a crane or HIAB delivery. Because the kiosk arrives flat and goes together by hand, none of that stops the build. For a permanent counter in a steel box instead, look at the 20ft converted container kiosk or the compact 10ft concession stand. Matching storage in the same finish is available as the 4m x 2.1m powder coated flat packed store, and the rest of the range sits under flat pack containers. Not sure which base suits your menu or footprint? Ask us for a quote.
