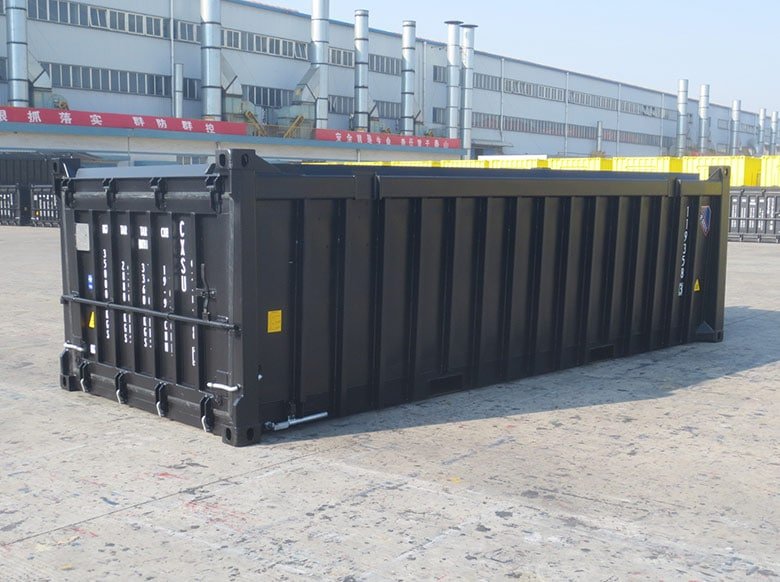

These specialized units are perfect for the Mining and Construction industries as they are built to store and transport bulk products such as concentrates, sand, ore and other materials. They can do this due to their heavy-duty design as the reduced side walls give the container strength and a low center of gravity.

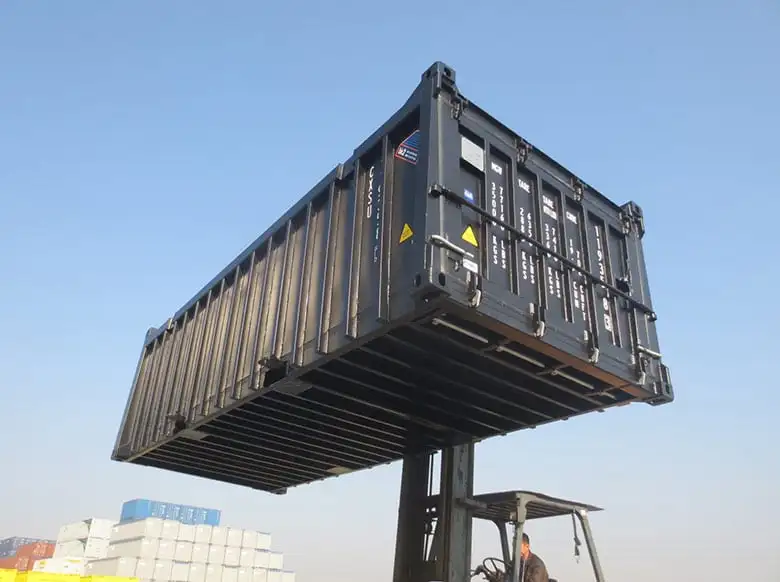

These Open Top Half Height Shipping Containers come with a removable hard lid for easy loading and control dust during transit. The lid is constructed with steel roof frame & roof panel and includes six sets of loading and unloading large fork handles, one pair of small fork pockets, seal gaskets and four roof locking mechanisms. At the bottom of the Open Top Half Height Shipping Container you will find one set Heavy Lift and one set Empty Fork Pockets.

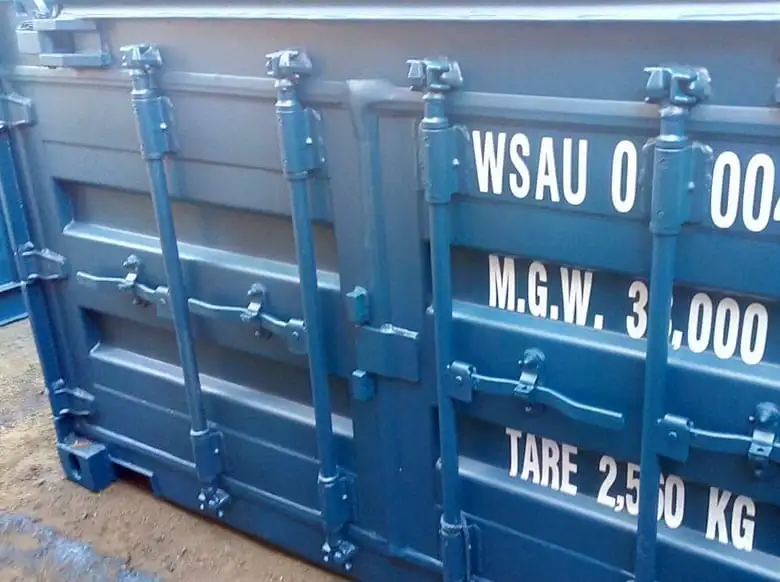

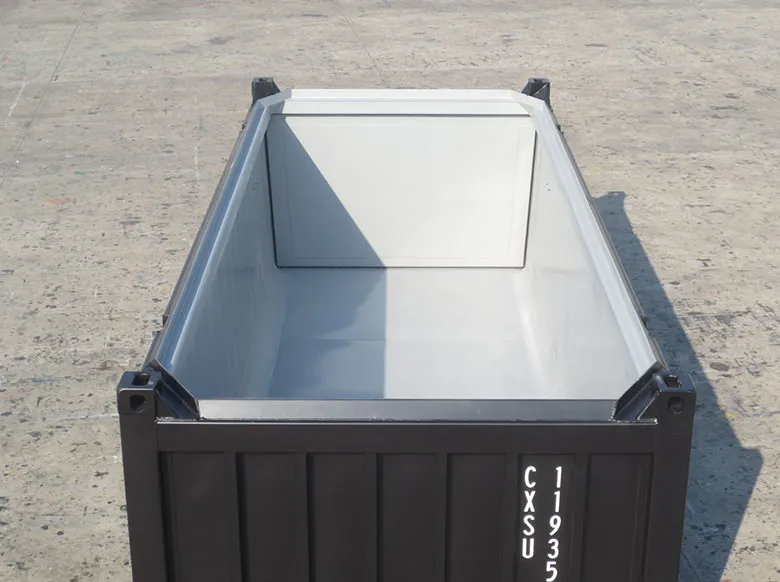

Our open top half height shipping containers also feature a Front Discharge Hatch and Rear Barn Doors. This allows for fast discharge of the loaded contents by opening the hatch or doors and tipping the container. Inside the container you will find tapered smooth inner walls that come down to a coved edge to smooth floor.
SPECIFICATIONS
| DIMENSIONS | EXTERNAL | INTERNAL |
|---|---|---|
| Length | 6,058 mm | 5,844 mm |
| Width | 2,438 mm | 2,287 mm |
| Height | 1,450 mm | 1,202 mm |
TOP OPENING
| LENGTH | WIDTH |
|---|---|
| 5,728 mm | 2,192 mm |
RATINGS
| RATING | VOLUME |
|---|---|
| Internal cubic capacity | 16.1 cu.m (567 cu.ft) |
| Maximum Gross Weight | 38,000 kg |
| Tare Weight | 2,530 kg |
| Maximum Payload | 35,470 kg |
Choosing Between Half Height and Full Height
Half height units earn their place where weight, not volume, fills the container first. Dense material such as ore, concentrate, sand and drill cuttings reaches maximum payload long before a standard box is full, so the shorter side walls simply remove space you were never going to use while making loading and tipping far easier. If you are moving lighter bulk goods, a full-height open top container with bows and tarpaulin remains the better buy, and enclosed dry bulk is usually handled in a 20ft top-loading dry bulk container. Offshore operations that need lifting certification should look at the 10ft DNV 2.7-1 half height container instead. The rest of the range is listed under open top containers, or send us your material and tonnage for a recommendation.
